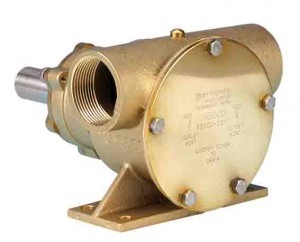

52200 Series 1 1/2″ Bronze Pedestal Pump

Flow rate: Nominal 200 Litres/min (44.5 gallons/min) at 1500rpm
Self-priming from dry up to 2.4m (7.8ft)

Model No.: 52200 Series

• Constructed from marine quality bronze and stainless steel for ruggedness and reliability.
• Easy to service and maintain.
• Inexpensive to buy and operate.
• Will tolerate abrasive wear (this may affect performance – seek advice from your distributer).
• Handles hard and soft solids without clogging.
• Can pump in either direction.
• Will not airlock.

Specifications

Body Materials	Bronze
Impeller	Neoprene or Nitrile
Wearplate	Replaceable
Shaft Material	Stainless steel
Seal	Carbon/ceramic mechanical type
Bearings	Twin row, ball type
Port Type	1 1/2″BSP to BS21 (DIN2999)
Weight	5 (kg) 11 (lb)

3 Models

52200-2011	1 1/2″ Bronze Pedestal Pump
	Impeller Neoprene
52200-2003	1 1/2″ Bronze Pedestal Pump
	Impeller Nitrile
52200-2021	1 1/2″ Bronze Pedestal Pump
	Impeller Neoprene – High Pressure

Downloads

 Bronze Flexible Impeller Pump Manual
