Flow rate: Nominal 270 Litres/min (60 gallons/min) at 1500rpm
Self-priming from dry up to 2.4m (7.8ft)

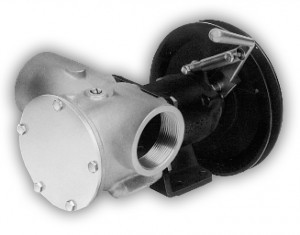

Model No.: 51270 Series
- Constructed from marine quality bronze and stainless steel for ruggedness and reliability.
- Easy to service and maintain.
- Inexpensive to buy and operate.
- Will tolerate abrasive wear (this may affect performance – seek advice from your distributer).
- Handles hard and soft solids without clogging.
- Can pump in either direction.
- Will not airlock.
- Non Centering one-piece handle helps prevent partial engagement
- Self adjusting clutch
- ‘Double-life’ feature to increase clutch life
|Body Materials||Bronze head, Cast Iron bearing housing|
|Impeller||Neoprene or Nitrile|
|Shaft Material||Stainless steel|
|Seal||Carbon/ceramic mechanical type|
|Bearings||Twin single row, ball type|
|Port Type||2″ Flange or BSP to BS21 (DIN2999)|
|Clutch Type||Manual – Self Adjusting|
|Pulley||180mm (7″) ‘A’ or ‘B’ section|
|51270-0011||2″ Bronze Manual Clutch Pump|
|51270-0003||2″ Bronze Manual Clutch Pump|
|51270-2011||2″ Bronze Manual Clutch Pump|
|51270-2003||2″ Bronze Manual Clutch Pump|
