Flow rate: Nominal 270 Litres/min (60 gallons/min) at 1500rpm
Self-priming from dry up to 2.4m (7.8ft)

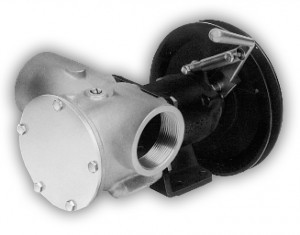

Model No.: 51270 Series
- Constructed from marine quality bronze and stainless steel for ruggedness and reliability.
- Easy to service and maintain.
- Inexpensive to buy and operate.
- Will tolerate abrasive wear (this may affect performance – seek advice from your distributer).
- Handles hard and soft solids without clogging.
- Can pump in either direction.
- Will not airlock.
- Non Centering one-piece handle helps prevent partial engagement
- Self adjusting clutch
- ‘Double-life’ feature to increase clutch life
Specifications
| Body Materials | Bronze head, Cast Iron bearing housing |
| Impeller | Neoprene or Nitrile |
| Wearplate | Replaceable |
| Shaft Material | Stainless steel |
| Seal | Carbon/ceramic mechanical type |
| Bearings | Twin single row, ball type |
| Port Type | 2″ Flange or BSP to BS21 (DIN2999) |
| Clutch Type | Manual – Self Adjusting |
| Pulley | 180mm (7″) ‘A’ or ‘B’ section |
| Weight | 11 (kg) 24.2 (lb) |
4 Models
| 51270-0011 | 2″ Bronze Manual Clutch Pump | ||||||
|
|||||||
| 51270-0003 | 2″ Bronze Manual Clutch Pump | ||||||
|
|||||||
| 51270-2011 | 2″ Bronze Manual Clutch Pump | ||||||
 |
|
||||||
| 51270-2003 | 2″ Bronze Manual Clutch Pump | ||||||
|
|
|
