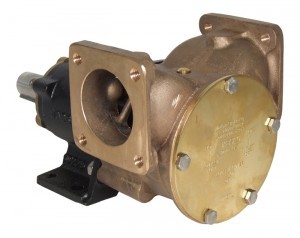

Bronze Pedestal Pumps
Jabsco
Flow rate: Nominal 270 Litres/min (60 gallons/min) at 1500rpm
Self-priming from dry up to 2.4m (7.8ft)
Model No.: 52270 Series
- Constructed from marine quality bronze and stainless steel for ruggedness and reliability.
- Easy to service and maintain.
- Inexpensive to buy and operate.
- Will tolerate abrasive wear (this may affect performance – seek advice from your distributer).
- Handles hard and soft solids without clogging.
- Can pump in either direction.
- Will not airlock.
Specifications
| Body Materials |
Bronze Body, Cast Iron bearing housing |
| Impeller |
Neoprene or Nitrile |
| Wearplate |
Replaceable |
| Shaft Material |
Stainless steel |
| Seal |
Carbon/ceramic mechanical type |
| Bearings |
Twin single row, ball type |
| Port Type |
2″ Flanged or 2″BSP to BS21 (DIN2999) |
| Weight |
9 (kg)
19.8 (lb) |
6 Models
| 52270-0011 |
2″ Bronze Pedestal Pump |
|
|
| Impeller |
Neoprene |
| Port Type |
2″ Flanged |
|
| 52270-0003 |
2″ Bronze Pedestal Pump |
|
|
| Impeller |
Nitrile |
| Port Type |
2″ Flanged |
|
| 52270-0021 |
2″ Bronze Pedestal Pump |
|
|
| Impeller |
Neoprene – High Pressure |
| Port Type |
2″ Flanged |
|
| 52270-2011 |
2″ Bronze Pedestal Pump |
|
|
| Impeller |
Neoprene |
| Port Type |
2″BSP to BS21 (DIN2999) |
|
| 52270-2003 |
2″ Bronze Pedestal Pump |
|
|
| Impeller |
Nitrile |
| Port Type |
2″BSP to BS21 (DIN2999) |
|
| 52270-2021 |
2″ Bronze Pedestal Pump |
|
|
| Impeller |
Neoprene – High Pressure |
| Port Type |
2″BSP to BS21 (DIN2999) |
|
Downloads
Bronze Flexible Impeller Pump Manual
