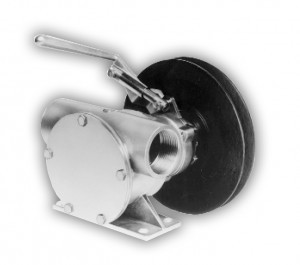

51200 1 1/2″ Bronze Manual Clutch Pump



Flow rate: Nominal 200 Litres/min (44.5 gallons/min) at 1500rpm
Self-priming from dry up to 2.4m (7.8ft)



Model No.: 51200 Series

• Constructed from marine quality bronze and stainless steel for ruggedness and reliability.
• Easy to service and maintain.
• Inexpensive to buy and operate.
• Will tolerate abrasive wear (this may affect performance – seek advice from your distributer).
• Handles hard and soft solids without clogging.
• Can pump in either direction.
• Will not airlock.
• Non Centering one-piece handle helps prevent partial engagement
• Self adjusting clutch
• ‘Double-life’ feature to increase clutch life



Specifications

Body Materials	Bronze
Impeller	Neoprene or Nitrile
Wearplate	Replaceable
Shaft Material	Stainless steel
Seal	Carbon/ceramic mechanical type
Bearings	Twin single row, ball type
Port Type	1 1/2″ BSP to BS21 (DIN2999)
Clutch Type	Manual – Self Adjusting
Pulley	180mm (7″) ‘A’ or ‘B’ section
Weight	8 (kg) 17.6 (lb)

3 Models

51200-2011	1 1/2″ Bronze Manual Clutch Pump
	1 1/2″ BSP Ports Impeller Neoprene Pulley 1A or B Section
51200-2003	1 1/2″ Bronze Manual Clutch Pump
	1 1/2″ BSP Ports Impeller Nitrile Pulley 1A or B Section
51200-2021	1 1/2″ Bronze Manual Clutch Pump
	1 1/2″ BSP Ports Impeller Neoprene – High Pressure Pulley 1A or B Section

Downloads

 Bronze Flexible Impeller Clutch Pump Manual
