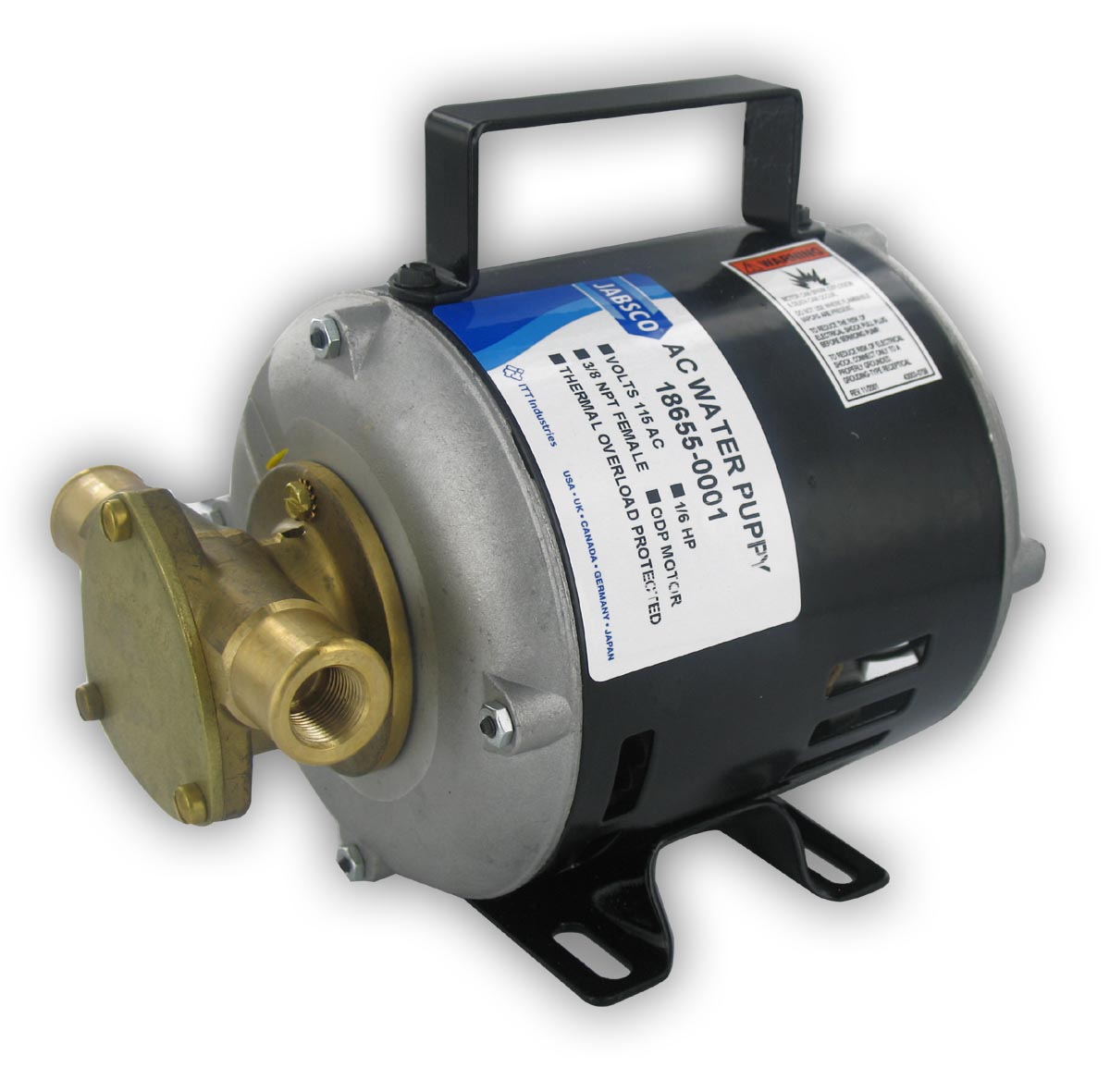

Bronze AC Flexible Impeller Pumps
Jabsco
Flow rate: Nominal 2.8 US gallons/min (10.6 Litres/min)
Self-priming from dry up to 6ft (1.8m)
Pressure up to 0.3 bar
Model No.: 18655 Series
- Easy to service and maintain.
- Will tolerate abrasive wear (this may affect performance – seek advice from your distributer).
- Handles hard and soft solids without clogging.
- Non pulsating flow
Specifications
| Body Materials |
Bronze |
| Impeller |
Neoprene Or Nitrile |
| Seal |
Lip Type |
| Bearings |
Uses motor bearings |
| Shaft Material |
Stainless Steel |
| Voltage |
115 (VAC) |
| Frequency |
60 (Hz) |
| Port Type |
3/8″ NPT FemaleTwo 3/4″ Male GardenHose Adapters Included |
| Motor |
1/6hp ODP or 1/4hp TENV |
| Protection |
Thermal Overload |
| Cable |
8ft (2.4m) |
| Plug Fitted |
3 Prong Grounded |
| Weight |
5.4 (kg)
12 (lb) |
3 Models
| 18655-0001 |
Bronze AC Motor Pump Unit |
|
| Impeller |
Neoprene |
| Motor Power |
1/6hp |
| Motor Type |
Open Drip Proof |
|
| 18655-0003 |
Bronze AC Motor Pump Unit |
|
| Impeller |
Nitrile |
| Motor Power |
1/6hp |
| Motor Type |
Open Drip Proof |
|
| 18655-0271 |
Bronze AC Motor Pump Unit |
|
| Impeller |
Neoprene |
| Motor Power |
1/4hp |
| Motor Type |
Totally Enclosed |
|
Downloads
Technical Datasheet
